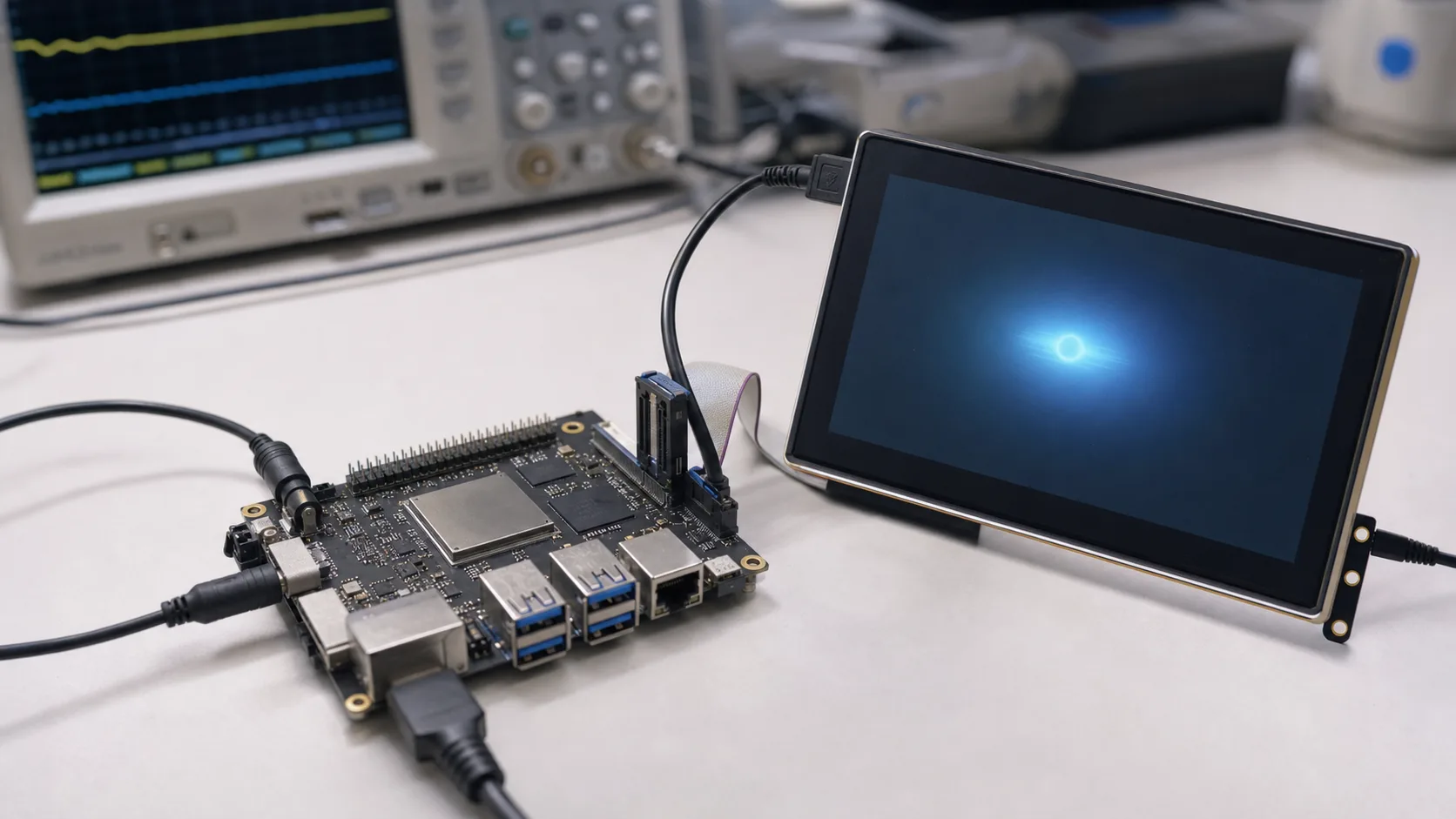

Android SBC Boot Time Optimization for Commercial Embedded Products

Boot time is one of those Android SBC topics that looks simple in a meeting and becomes complicated in the lab. A product manager may ask for “fast boot,” while an engineer needs to know which moment matters: power input, boot logo, display backlight, Android home screen, customer app ready, network connected, or peripheral initialized. If those checkpoints are not separated, the team can spend days optimizing the wrong stage.

For commercial embedded products, boot time is not only a benchmark. It affects how an HMI feels after a power cut, how a kiosk recovers after maintenance, how a smart terminal behaves during store opening, and whether an installer trusts the device in the field. A good Android SBC should not only boot Android; it should boot into the product workflow predictably.

Define what “boot complete” means

Before changing BSP settings, define the measured endpoint. A wall-mounted room panel may be acceptable when the UI is visible and touch works. A payment or service terminal may not be ready until the app, camera, scanner, network, and printer service are all initialized. An industrial HMI may need Ethernet, RS485 gateway service, watchdog, and data logging before operators can use it safely.

Use at least three checkpoints:

This distinction helps engineering and procurement speak clearly. A supplier may show a fast Android home screen, but the real product may still wait for a cloud login, USB peripheral, scanner daemon, or database migration. The number that matters is the one the end user feels.

Measure before optimizing

The first mistake is changing services, kernel options, or launcher behavior before recording a baseline. On Android projects, teams usually need a boot log, kernel log, Android logcat, and a simple stopwatch test. For more structured background, the official Android init documentation is useful, but real boot behavior still depends on the SoC BSP, board design, storage device, and customer image.

Useful checkpoints include:

adb shell getprop sys.boot_completed
adb logcat -b events | grep boot_progress
adb shell dmesg | head
adb shell uptime

For a production-oriented test, record the time from power input to app-ready state across several cold boots. Do not trust a single result from one warm bench sample. Test with the final display, touch panel, storage option, wireless module, customer APK, and expected peripheral set. A fast engineering image can become slow after branding, app preload, update service, and production logging are added.

Check bootloader and display behavior

Bootloader time is often hidden because users only notice the screen after backlight turns on. Still, bootloader configuration can affect the total boot path. Engineers should check boot delay, console settings, display initialization, storage scan, recovery checks, and whether any debug wait is enabled.

Display behavior is especially important for HMI and terminal products. A black screen for several seconds feels worse than a branded boot logo, even when total boot time is the same. If the product needs a clean startup experience, discuss boot logo, panel power sequence, backlight timing, rotation, and flicker with the supplier early.

For products with a fixed enclosure, the boot discussion should happen together with custom SBC planning. A display cable, backlight circuit, touch controller, or PMIC choice can change both boot timing and production validation.

Reduce unnecessary kernel and service work

Android BSPs often include functions that are useful for a development board but unnecessary for a commercial product. Unused hardware drivers, debug services, test apps, demo launchers, and broad logging can add time or create variable startup behavior. The goal is not to remove blindly. The goal is to understand what the product actually needs.

Typical review items include:

• Kernel modules and drivers that are not used by the product.
• USB, camera, audio, or network services that start before they are needed.
• Debug logging that writes heavily during startup.
• Demo applications or vendor tools left in the image.
• Launcher behavior and app auto-start order.
• Network waits that block user interface startup.

For Android SBC boot time optimization, app startup deserves its own review. Sometimes the board is already ready, but the APK performs database migration, cloud authentication, large asset loading, or peripheral discovery on the main thread. In that case, the boot issue is partly an application design issue, not only BSP work.

Storage and image layout matter

Storage affects boot time and consistency. eMMC is usually more predictable than random SD cards. Slow storage can make Android service startup uneven, especially after updates or when logs accumulate. If the product will ship in volume, use controlled storage parts and avoid validating boot time on one convenient sample card.

Image layout also matters. A/B update strategy, recovery partition, customer data partition, log storage, and first-boot initialization can all affect timing. The first boot after flashing may be slower than normal boot; the factory should not confuse first-boot setup with every boot. For production planning, record both.

If the same product may use Android and Linux variants, compare expectations with Android SBC or Linux SBC for Embedded Devices. Linux may boot faster for a narrow gateway or controller, while Android may be worth the additional startup cost when the product needs a rich UI and app ecosystem.

Validate recovery after power loss

Commercial products are not always shut down politely. Users unplug devices, buildings lose power, installers test breakers, and vehicles or machines may cycle power repeatedly. Boot time optimization must not damage recovery reliability. A device that boots five seconds faster but occasionally fails after power loss is not production-ready.

Test repeated cold boots, brown-out behavior where possible, watchdog recovery, storage integrity, and app auto-start after unexpected shutdown. For factory and pilot production, combine boot testing with the functional test flow. PCBA Production Testing for Embedded SBC Projects is a useful companion topic when the device is moving from samples to batch production.

What to ask your supplier

When evaluating an Android SBC supplier, ask specific questions:

Avontek can review Android SBC boot behavior together with display, touch, wireless, storage, app startup, and production test requirements. If your product needs a fixed startup target, send the current boot log, product workflow, APK behavior, display information, interface list, and expected quantity through the contact page. The best time to discuss boot time is before the sample is accepted as the production direction.

Boot optimization is not one magic switch. It is a controlled review of the full startup path: power, bootloader, kernel, Android services, display, app, peripherals, and recovery. When those stages are measured separately, the project team can decide where to spend engineering time and where the current boot behavior is already good enough.
